Automatic Rotary Packaging Machine

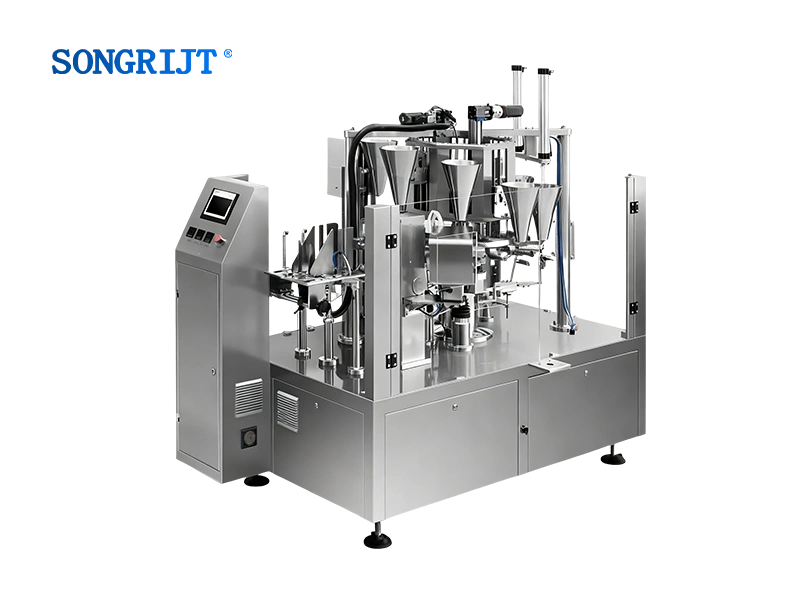

SR10-260/200 - Automatic Rotary Packaging Machine

The packaging system consists of a rotary packaging machine,a working platform,an electronie scale andaZ-shaped lifting machine. Fast packaging sped and stable performance.

GET A QUOTE CONTACT US

TECHNICAL PARAMETER

Model number	SR10-260 SR10-200
Packaging material	Stand-up pouches, zipper bags, foil pouches, four-side sealed bags, and other laminated bags
Driving mode	Mechanical Transmission (Fully Mechanical Mode with Cam, Pulley, and Lever)
Workflow	Bag loading, printing production date, bag opening, first filling, second filling, reserve, heat sealing, shaping and output
Packagingsize	Width 80–260 mm × Length 100–400 mm Width 60–200 mm × Length 100–380 mm
Packing speed	30-45 bags/min 30-60 bags/min
Drvingpower uply	Three-phase 380V/50Hz
Airconsumption	≥0.4m³/min

CONFIGURATION FEATURES

The packaging system consists of a rotary packaging machine,a working platform,an electronie scale andaZ-shaped lifting machine.
Fast packaging sped and stable performance.
Muti-station feeding solvesthe problem ofsmall packages feeding large ones.
Iinnovate and solve various packaging problems at a reasonable cost.
This machine uses pre-made packaging bags with perfect ackaging patterns and good sealing quality,thereby enhancing the quality and grade of theproducts.
Fallow the hopper to feed materials multiple times to increase the bagging rate of materials.

ADAPTATION RANGE

Itis suitable for packing products such asblock,granule,powder liuid/sauce.pickle and so on.

YOU MAY ALSO BE INTERESTED IN THE FOLLOWING ISSUES

How many years has your company been founded?

28 years. For all these years, we have been focusing on manufacturing vacuum packaging machines.

Are you trading company or manufacturer ?

Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.

What about your warranty?

Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).

Is there any installation direction after we received the machine?

Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.

How long will it take to deliver the goods after the order is confirmed?

It takes almost 30 days to complete the production, after which we will arrange for shipment.
